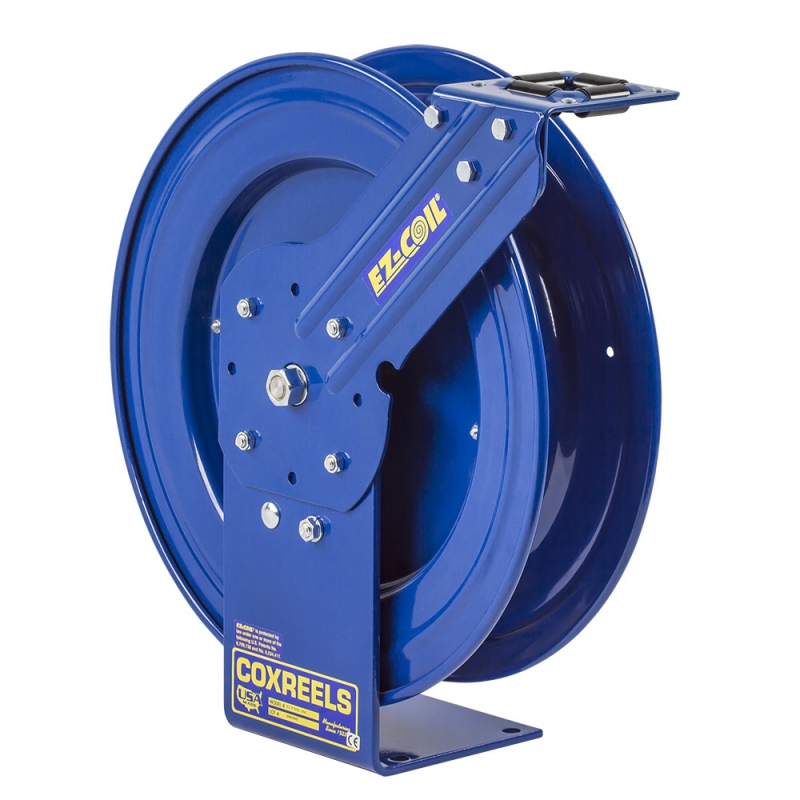

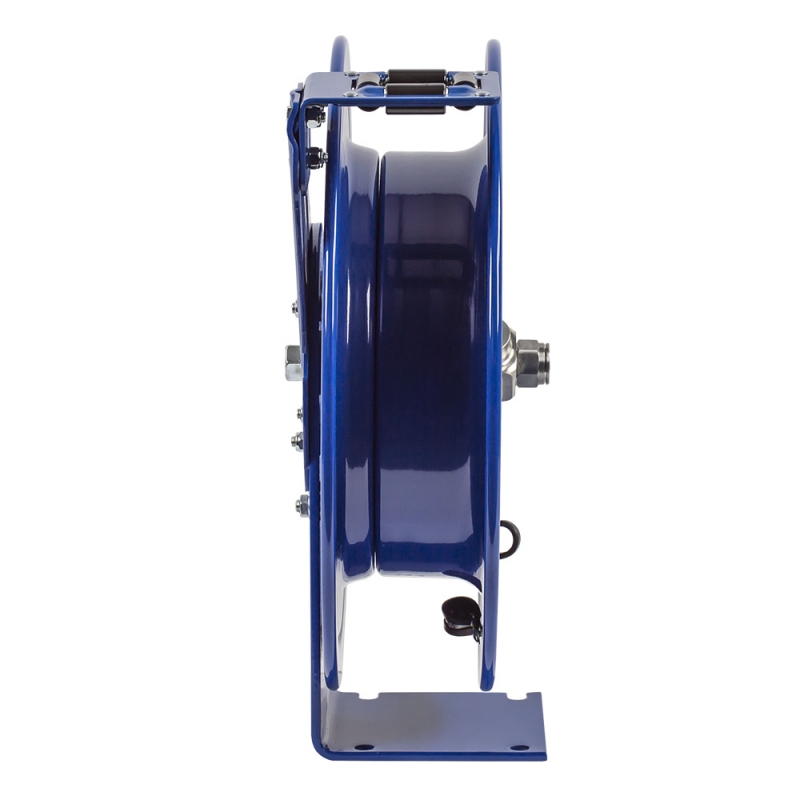

Coxreel EZ-P-BLL-350 | P Pure Flow Series - EZ Coil Specialty Reels

COXREELS Pure Flow Series is offered in spring rewind, hand crank and motorized retractions. All Pure Flow hose reels come standard equipped with stainless steel air/fluid paths and stainless steel swivels with non-toxic, food quality grease, ensuring clean,non-contaminated, safe and reliable transfer of breathing air, potable water or other clean fluids.

Coxreel - EZ-P-BLL-350 - Swivel

• Non-corrosive stainless steel air/fluid path with machined from high quality stainless steel 90° full-flow NPT swivel inlet
• Swivel Seals: NITRILE Non-Toxic Food Grade Grease

Coxreel - EZ-P-BLL-350 - Design & Structure

• Safely store respiratory air hose lines for low or highnpressure breathing air systems
• Safely store potable water hose lines for drinking water systems
• Safely store any hose requiring sanitized & non-contaminated fluid transfer application
• Each of these reels is built of their standard series with their own unique features & benefits

Coxreel - EZ-P-BLL-350 - Retract

• Enclosed factory tuned & matched cartridge-style spring motor
• Non-corrosive stainless steel spring, pawl & zincnplated ratchet
• Multi-position lock ratchet mechanism secures hose at desired length

Coxreel - EZ-P-BLL-350 - Signature Features

• Professional grade heavy duty steel construction
• Rolled edges & ribbed discs provide strength & safety
• Leading 2-year manufacturer's limited warranty
• Made in the U.S.A. - Sold & Supported Worldwide
• SWIVEL - Non-corrosive stainless steel air/fluid path with machined for high quality stainless steel 90? full-flow NPT swivel inlet.
• CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
• SAFETY STORAGE - Safely store respiratory air hose lines for low or high pressure breathing systems, potable water hose lines for drinking water systems, and any hose requiring sanitized and non-contaminated fluid transfer application
• OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable guide arm, and sturdy permanently lubricated precision bearings.

Coxreel - EZ-P-BLL-350 - Product Categories

• EZ Coil Reels
• EZ Coil Specialty Reels
• P Pure Flow Series

Coxreel - EZ-P-BLL-350 - Dimension Drawing

Click image to enlarge.

Coxreel - EZ-P-BLL-350 - Specifications

Brand Name	Coxreel
Manufacturer Part Number	EZ-P-BLL-350
Item Description	P Pure Flow Series - EZ Coil Specialty Reels

Coxreel - EZ-P-BLL-350 - Dimensions

I.D	3/8"
O.D	5/8"
Length	50'
Hose	No
Max PSI	300
Ship Weight (lbs)	43
Overall Dimensions (W) (H) (L)	7.13"(W) 18.63"(H) 17.13"(L)
Mounting Pattern (M) (N)	4"(M) 5"(N)
Base (X) (Y)	6"(X) 6"(Y)
