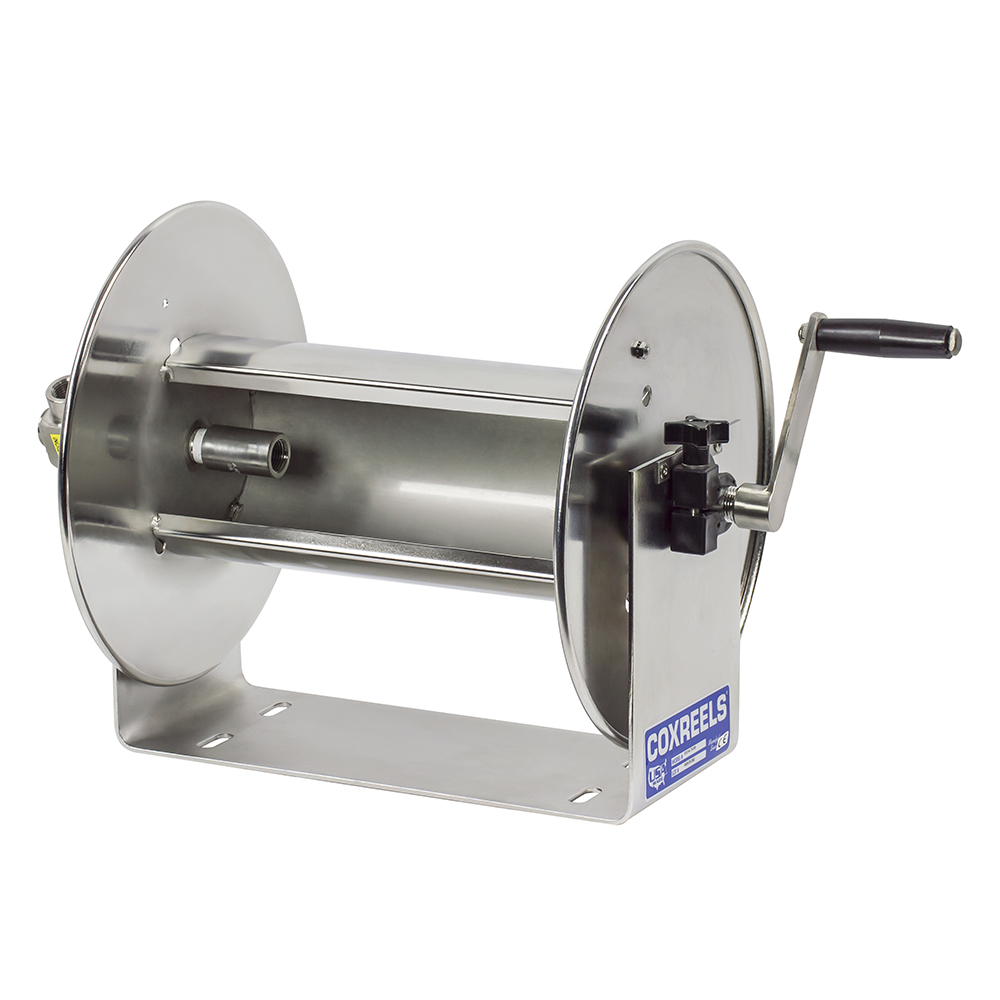

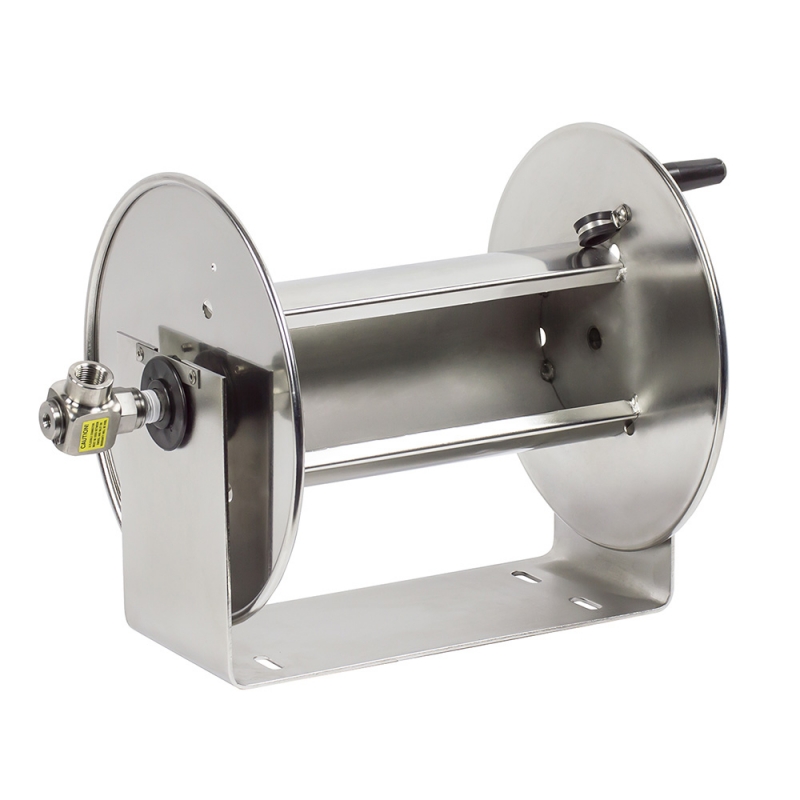

Coxreel 117-4-225-SS | 100-SS Series - Hand Crank Specialty Reels

COXREELS SS Series "Stainless Steel" hand crank hose reels have similar features to their related series, but are constructed of high quality electro-polished stainless steel with stainless steel fluid paths. They offer clean, non-corrosive performance in applications that require it, such as food and chemical processing, marinas, and anywhere that rust, corrosion and contamination thrive.

Coxreel - 117-4-225-SS - Swivel

• Non-corrosive external fluid path with machined from high quality stainless steel 90° full-flow NPT swivel inlet
• Swivel Seals:
• NITRILE Non-Toxic Food Grade Grease

Coxreel - 117-4-225-SS - Design & Structure

• Professional grade, compact & lightweight design.
• Open drum design for no hassle hose wrap.
• Solid one piece, heavy gauge steel "U" shaped frame.
• Adjustable tension brake to prevent "free-wheeling" during operation, transport or storage.

Coxreel - 117-4-225-SS - Retract

• Direct hand crank rewind.

Coxreel - 117-4-225-SS - Signature Features

• Professional grade heavy duty steel construction.
• Rolled edges & ribbed discs provide strength & safety.
• Leading 2-year manufacturer's limited warranty.
• Made in the U.S.A. - Sold & Supported Worldwide.
• SWIVEL - Non-corrosive external fluid path with machined from high quality stainless steel 90° full-flow NPT swivel inlet.
• U SHAPED FRAME DESIGN - Solid one piece electro-polished finish stainless steel U shaped frame. Professional grade, compact, lightweight and simple design.
• CNC SPUN DISCS - Heavy duty stainless steel CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
• ADJUSTABLE TENSION BRAKE - Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
• STEEL CONSTRUCTION - High quality stainless steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings.
• OTHER FEATURES INCLUDE - Electro-polished stainless steel finish, long lasting, chip resistant and rust inhibiting CPC powder coat finish, and direct hand crank for easy mechanical retraction.

Coxreel - 117-4-225-SS - Product Categories

• Hand Crank Reels
• Hand Crank Specialty Reels
• 100-SS Series

Coxreel - 117-4-225-SS - Dimension Drawing

Click image to enlarge.

Coxreel - 117-4-225-SS - Specifications

Brand Name	Coxreel
Manufacturer Part Number	117-4-225-SS
Item Description	100-SS Series - Hand Crank Specialty Reels

Coxreel - 117-4-225-SS - Dimensions

I.D	1/2"
O.D	7/8"
Length	225'
Hose	No
Max PSI	4000
Ship Weight (lbs)	31
Overall Dimensions (W) (H) (L)	22.75"(W) 18"(H) 17"(L)
Mounting Pattern (M) (N)	10"(M) 3"(N)
Base (X) (Y)	14"(X) 6"(Y)

Coxreel - 117-4-225-SS - Videos

External Fluid Path	Click to View
Steel Construction	Click to View
Install Inlet Hose	Click to View
Install Outlet Hose	Click to View
Swivel Seal Replacement	Click to View
