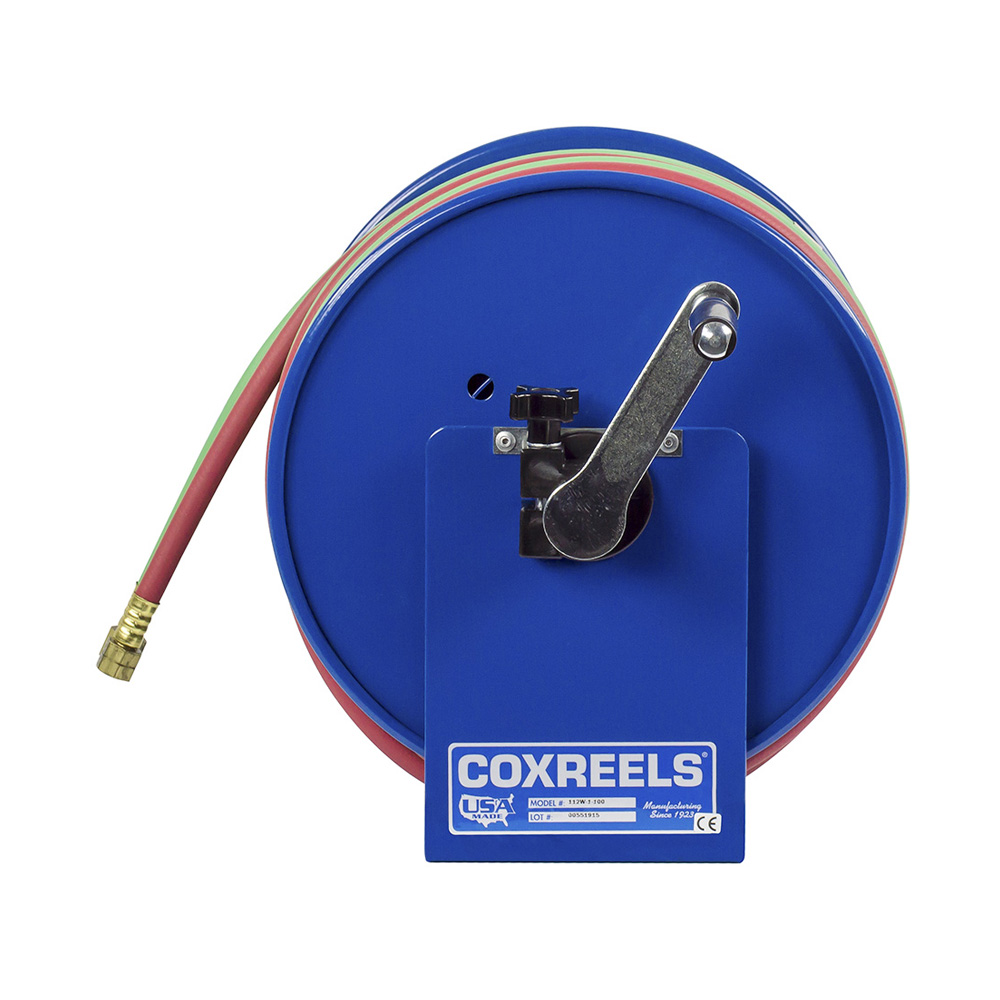

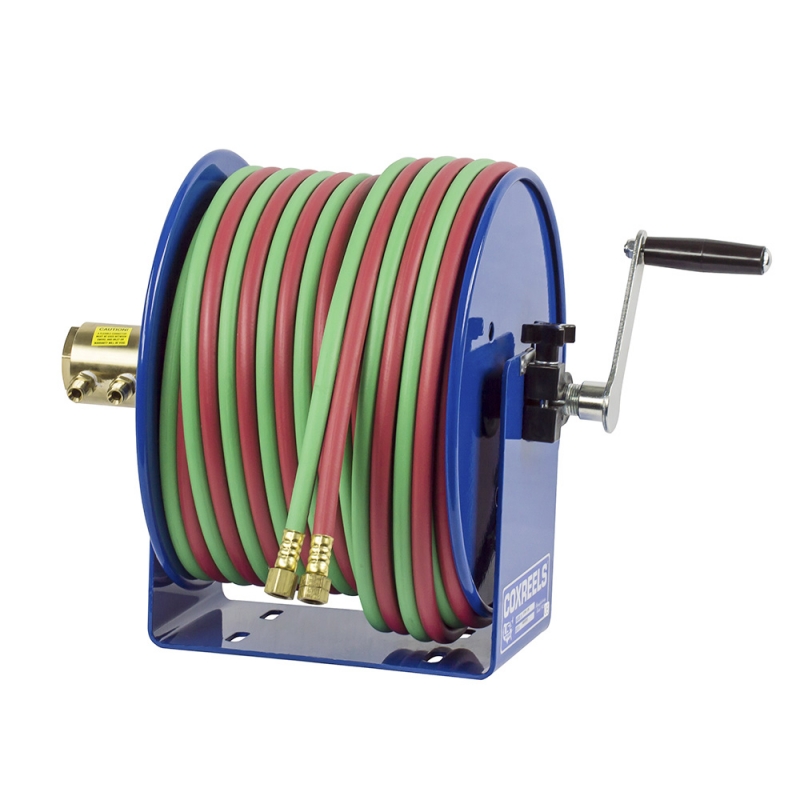

Coxreel 112WT-1-50 | 100W Series - Hand Crank Specialty Reels

COXREELS 100W Series "Welding" hand crank hose reels are lightweight, compact and versatile. Save time and effort while increasing the safety of your work environment. The sturdy "U" shaped frame and all steel construction make this one tough little reel. All listed models are supplied less hose.

Coxreel - 112WT-1-50 - Swivel

• External 90º full-flow dual ported brass swivel offering both connections from the same side of the reel.
• Swivel Seals: VITON

Coxreel - 112WT-1-50 - Design & Structure

• Composite bearing for smooth rotation.

Coxreel - 112WT-1-50 - Retract

• Direct hand crank rewind.

Coxreel - 112WT-1-50 - Signature Features

• Professional grade heavy duty steel construction.
• Rolled edges & ribbed discs provide strength & safety.
• Leading 2-year manufacturer's limited warranty.
• Made in the U.S.A. - Sold & Supported Worldwide.
• WELDING GAS SWIVEL - External 90º full-flow dual ported brass swivel with VITON
• seals offering both connections from the same side of the reel. No need to remove the reel from its mount.
• U SHAPED FRAME DESIGN - Solid one piece heavy gauge all steel U shaped frame. Professional grade, compact, lightweight and simple design.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• ADJUSTABLE TENSION BRAKE - Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
• STEEL CONSTRUCTION - High quality steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings.
• OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, composite bearing for smooth rotation and direct hand crank for easy mechanical retraction.

Coxreel - 112WT-1-50 - Product Categories

• Hand Crank Reels
• Hand Crank Specialty Reels
• 100W Series

Coxreel - 112WT-1-50 - Dimension Drawing

Click image to enlarge.

Coxreel - 112WT-1-50 - Specifications

Brand Name	Coxreel
Manufacturer Part Number	112WT-1-50
Item Description	100W Series - Hand Crank Specialty Reels

Coxreel - 112WT-1-50 - Dimensions

I.D	1/4"
O.D	1/4"
Length	50'
Hose	Yes
Max PSI	200
Ship Weight (lbs)	28
Overall Dimensions (W) (H) (L)	15.25"(W) 13"(H) 12"(L)
Mounting Pattern (M) (N)	4"(M) 3"(N)
Base (X) (Y)	6"(X) 6"(Y)

Coxreel - 112WT-1-50 - Videos

CPC Powder Coat	Click to View
External Fluid Path	Click to View
Steel Construction	Click to View
Install Inlet Hose	Click to View
Install Outlet Hose	Click to View
Swivel Seal Replacement	Click to View
