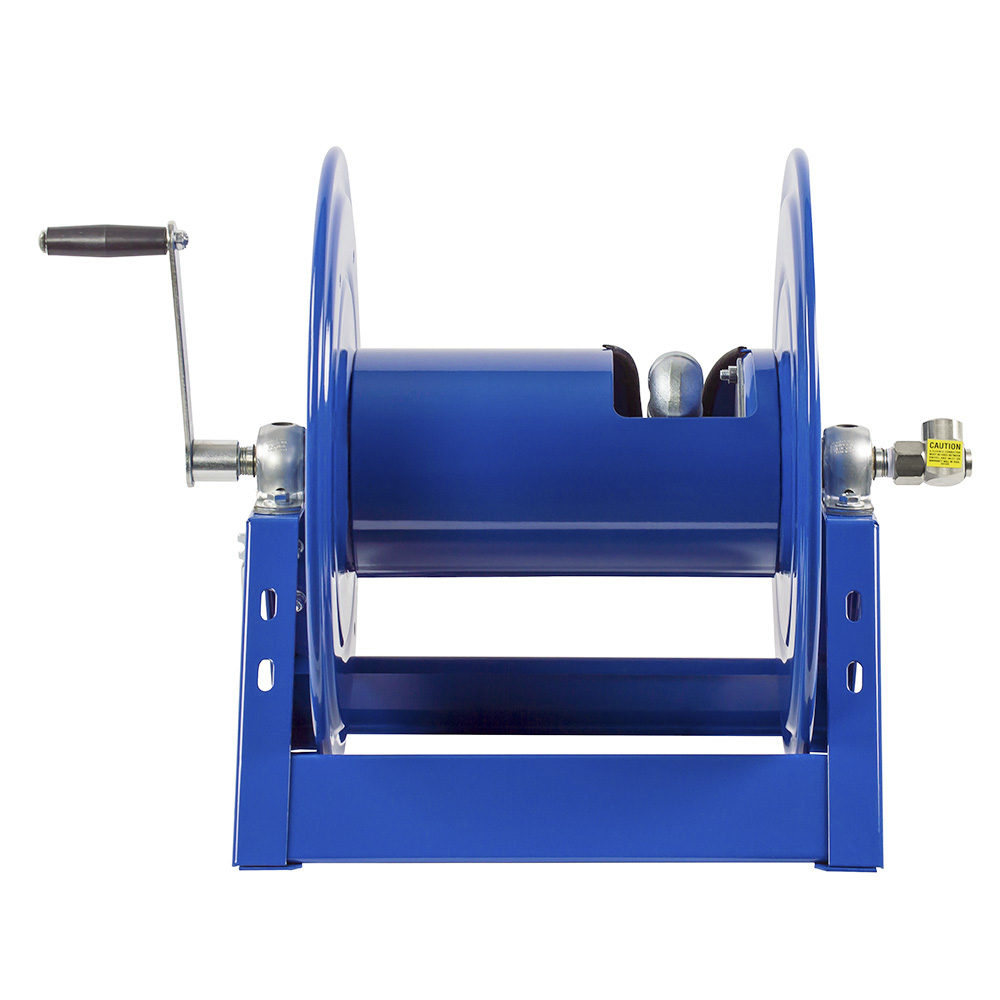

Coxreel 1125P-4-8-C | 1125 Pure Flow Series - Hand Crank Specialty Reels

COXREELS 1125 Pure Flow Series, hand crank retraction, have the features demanded by industry professionals. The industry preferred design features a sturdy one piece all welded "A" frame base, low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap. All Pure Flow hose reels come standard equipped with stainless steel air/fluid paths and stainless steel swivels with non-toxic, food quality grease, ensuring clean, non-contaminated, safe and reliable transfer of breathing air, potable water or other clean fluids.

Coxreel - 1125P-4-8-C - Swivel

• Non-corrosive stainless steel air/fluid path with machined from high quality stainless steel 90° full-flow NPT swivel inlet
• Swivel Seals: NITRILE Non-Toxic Food Grade Grease.

Coxreel - 1125P-4-8-C - Design & Structure

• Safely store respiratory air hose lines for low or high pressure breathing air systems.
• Safely store potable water hose lines for drinking water systems.
• Safely store any hose requiring sanitized & non-contaminated fluid transfer application.
• Each of these reels is built of their standard series with their own unique features & benefits.

Coxreel - 1125P-4-8-C - Retract

• Solid steel direct hand crank with smooth round handle.
• Also available in motorized options.

Coxreel - 1125P-4-8-C - Signature Features

• Professional grade heavy duty steel construction.
• Rolled edges & ribbed discs provide strength & safety.
• Leading 2-year manufacturer's limited warranty.
• Made in the U.S.A. - Sold & Supported Worldwide.
• SWIVEL - Non-corrosive stainless steel air/fluid path with machined for high quality stainless steel 90º full-flow NPT swivel inlet.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
• OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
• A FRAME - Sturdy one piece, all CNC robotically welded 12 gauge steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
• SAFETY STORAGE - Safely store respiratory air hose lines for low or high pressure breathing systems, potable water hose lines for drinking water systems, and any hose requiring sanitized and non-contaminated fluid transfer application.
• OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents free wheeling and front bevel geared crank for easy mechanical retraction.

Coxreel - 1125P-4-8-C - Product Categories

• Hand Crank Reels
• Hand Crank Specialty Reels
• 1125 Pure Flow Series

Coxreel - 1125P-4-8-C - Dimension Drawing

Click image to enlarge.

Coxreel - 1125P-4-8-C - Specifications

Brand Name	Coxreel
Manufacturer Part Number	1125P-4-8-C
Item Description	1125 Pure Flow Series - Hand Crank Specialty Reels

Coxreel - 1125P-4-8-C - Dimensions

I.D	1/2"
O.D	7/8"
Length	150'
Hose	No
Max PSI	6000
Ship Weight (lbs)	37
Overall Dimensions (W) (H) (L)	21.75"(W) 18.63"(H) 17.63"(L)
Mounting Pattern (M) (N)	11.44"(M) 10"(N)
Base (X) (Y)	13.38"(X) 15.38"(Y)

Coxreel - 1125P-4-8-C - Videos

CPC Powder Coat	Click to View
External Fluid Path	Click to View
Low Profile Riser	Click to View
Pillow Block Bearing	Click to View
Steel Construction	Click to View
Welded Steel "A" Frame	Click to View
Install Inlet Hose	Click to View
Install Outlet Hose	Click to View
Swivel Seal Replacement	Click to View
