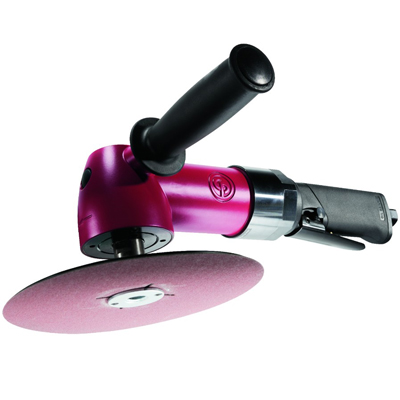

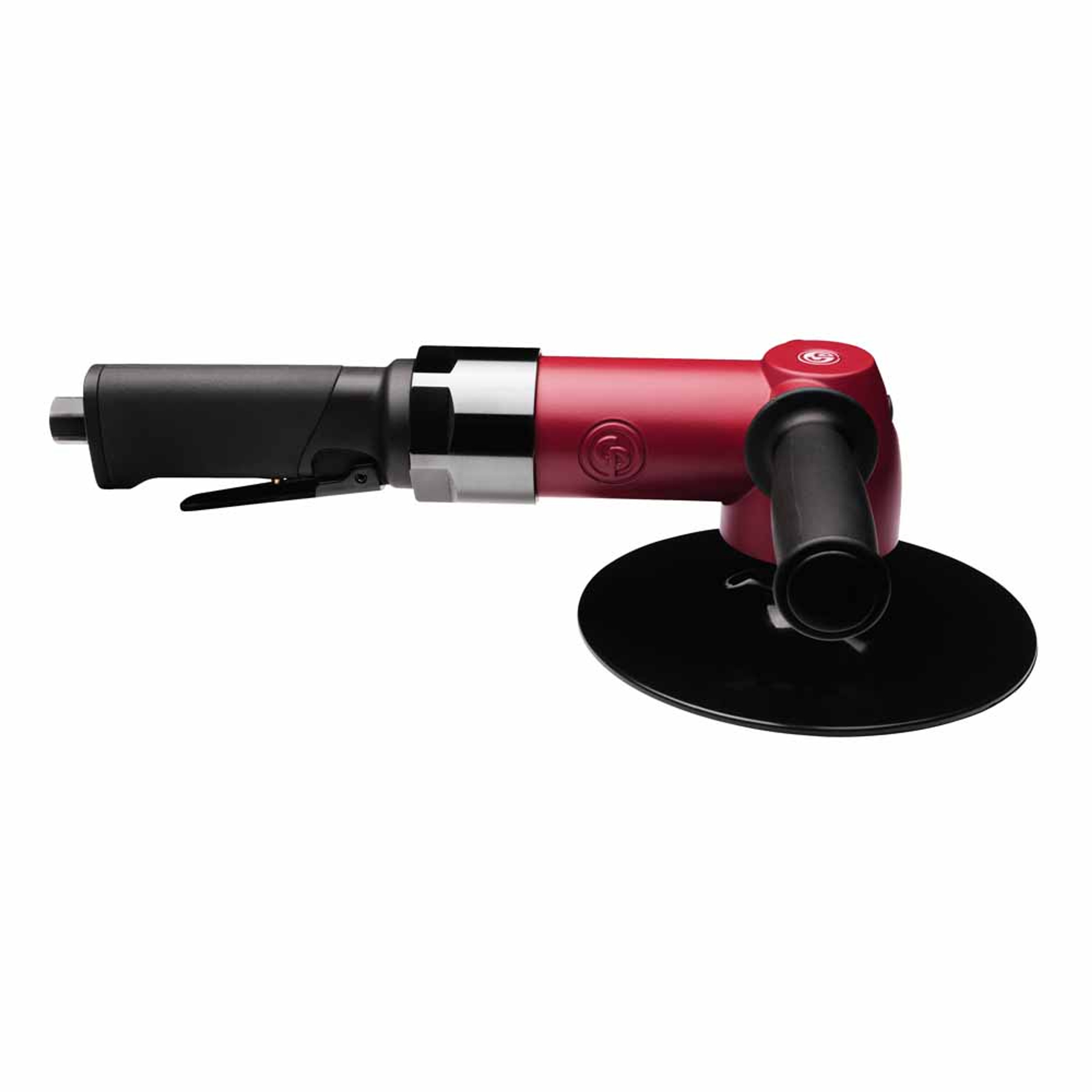

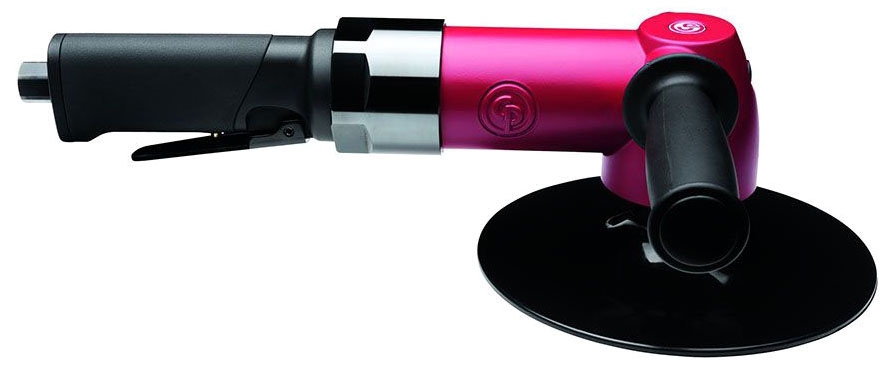

Chicago Pneumatic Tools 7269S | Sander Angle 7" Hd 5000 Rpm

Chicago Pneumatic CP7269S Heavy-Duty Angle Sander is intended to be used in sanding, polishing, wire brushes, and buffing wheels. Compatible with multiple types of abrasive discs and sheets, this sander is light weight and can be used on surfaces such as wood, fiberglass, sheet metal and aluminum. It tackles tough sanding jobs like smoothing down body filler or shaping and leveling large flat surfaces. Chicago Pneumatic 8941078690 Angle Sander maximizes the material removal rates while getting ideal deburring precision. Powerful 0.71 hp air motor delivers plenty of strength. Chicago Pneumatic CP7269S Sander is suitable for high production environments such as those on production/assembly lines, where high durability is required and the tools are used frequently. This sander combines the best of durability, dependability and versatility for your most demanding applications.

Chicago Pneumatic Tools - 7269S - Features

• Heavy duty angle sander
• Hardened and ground spiral bevel gears
• Powerful motor for productivity
• Low vibrations and durability
• Perfect for weld smoothing, paint, rust and stone removal
• Model CP7269S
• Part number 8941078690
• Free speed 5000 rpm
• Pad diameter 7" 180 mm
• Spindle thread 5/8"-11
• Power 530 W 0,71 hp
• Height over spindle 4.3" 110mm
• Length 12.4" 315mm
• Weight 5.1 lbs.
• Average air consumption 378 l/mn 13.35 cfm
• Actual air consumption 756 l/mn 26,7 cfm
• Air inlet thread size 1/4 NPTF in.
• Min. hose size 3/8" 10 mm
• Noise level 87 db(A)
• Sound Power 98 db(A)
• Vibration (ISO-8662-8) <2,5 m/s?
• Vibration ? (ISO-28927-3) <2,5 m/s?

Chicago Pneumatic Tools - 7269S - Additional Information

• Power Rating 0.7 HP
• Air Consumption 13 CFM (Average), 26.7 CFM (Actual)
• Hose Size 3/8 Inch
• Sound Pressure 87 Decibel
• Sound Power 98 Decibel
• Vibration Level <2.5 Meter per Square Second
• Applicable Standard ISO-28927-3
• Includes 7 Inch Pad

Chicago Pneumatic Tools - 7269S - Specifications

Order Part Number	CP7269S
Item Description	"SANDER ANGLE 7"" HD 5000 RPM"
Manufacturer Long Name	Chicago Pneumatic
Manufacturer Part Number	894-107-8690
Product Group Id	CP00
Country of Origin	TW
Harmonization Code	84671114
Bin Code	FC071
Default Selling Unit	EA
Type	Angle Sander
Power (HP)	0.71
Power (kW)	530
Pad Size (in.)	7
Pad Size (mm)	180
Air Consumption @ Load (cfm)	26.7
Air Consumption @ Load (l/s)	12.6
Length (in.)	12.6
Length (mm)	315
Sound Pressure dB(A)	87
Sound Power dB(A)	98
Shipping Weight	7lbs
Part Number	894-107-8690
UNSPSC	27131500
WARNING	This or other products sold on this website may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to	www.P65Warnings.ca.gov

Chicago Pneumatic Tools - 7269S - Package Information

Individual Item Weight

5.100 Pound
