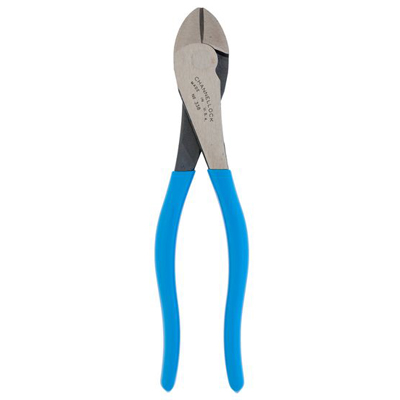

Channel Lock 338 | Diagonal Lap Joint Cutting Pliers, 8 Inch

The unique XLT design provides legendary strength in a streamlined design with a powerful cutting edge. These pliers were designed with precision and space limitations in mind.

Channellock - 338 - Features

• Cutting Pliers
• Type Lap Joint, High Leverage, Precision Machined
• Jaw Type Diagonal
• Overall Length 8 Inch
• Jaw Length 0.86 Inch
• Material High Carbon Steel
• Process Laser Heat Treated
• Handle Material Plastic Grip
• Capacity 0.063 to 0.091 Inch Diameter (Piano Wire), 0.047 to 0.091 Inch Diameter (Hard Wire/Medium Hard Wire), 0.162 Inch Diameter (Soft Wire)
• Handle Color Blue
• Application Cutting
• Joint Size 1.09 Inch Width x 0.47 Inch Thickness
• Cutting Edge Size 0.86 Inch
• Handle Span 2.15 Inch
• Application Standard ISO 9001
• XLT Xtreme Leverage Technology means considerably less force required to cut than traditional high leverage
• High Carbon Steel CHANNELLOCK uses high carbon American steel for superior performance on the job
• Knife-and-Anvil Cutting Edge Precision machined knife-and-anvil style cutting edges to ensure perfect mating and superior cutting edge life
• Cutting Edges Laser heat-treated cutting edges last longer
• Diagonal Cutting Lap joint diagonal
• Blue Grips CHANNELLOCK BLUE Comfort Grips

Channellock - 338 - Additional Information

• Joint Size 1.09 Inch Width x 0.47 Inch Thickness
• Cutting Edge Size 0.86 Inch
• Handle Span 2.15 Inch
• Application Standard ISO 9001

Channellock - 338 - Specifications

Order Part Number	CL338
Item Desc	Plier Diag Lap Joint 8"
Manufacturer Long Name	Channellock Inc.
Manufacturer Part Number	338
UPC	25582133613
Product Group Id	CL00
Country of Origin	US
Harmonization Code	82032050
MS Bin Code	AL113
Default Selling Unit	EA
UPC	025582133613

Channellock - 909 - Package Information

Individual Item Weight

0.700 Pound

Channellock - 338 - Documents and Downloads

Channellock 338 Catalog Pages

Click to View
