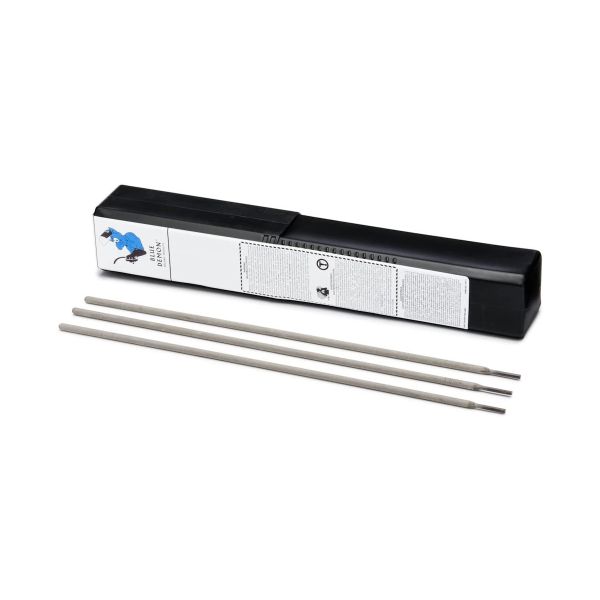

Blue Demon 59121 | E6013 Carbon Steel Electrode 1/16In X 14In X 5 Lb E6013-116-05P

E6013 X 1/16in X 14in X 5 Lb Pack General Purpose Carbon Steel Electrode

Blue Demon - 59121 - Product Categories

• Welders
• Welding Accessories
• TIG Accessories
• TIG Tungstens & Filler Rods

Blue Demon -59121 - Overview

• E6013
• is a mild-steel, all position, general purpose cellulose-base rod. It operates on AC or DC welding current and works well on low voltage AC machines.
• E6013
• is an excellent choice where there is poor fit-up in the joint. It deposits easily and smoothly producing medium to shallow penetration. Small sizes are well adapted to low heat and thin metals. Medium to heavy slag is easily removed and provides for excellent weld cleaning action during the welding process.
• Typical Applications
• : general purpose fabrication, metal buildings and structures, machine parts, shaft buildup

Blue Demon - 59121 - Specifications

• AWS Class: E6013
• Alloy: E6013
• Welding Position: F, V, OH, H
• Certification: AWS A5.1/A5.1M:2004
• ASME: SFA A5.1
• Current: DC, AC, DCEP, DCEN
• Tensile Strength, kpsi: 60 min
• Yield Strength, kpsi: 48 min
• Elongation in 2" (%): 17 min

Blue Demon - 59121 - General Specifications

Brand Name	Blue Demon
Manufacturer Part Number	59121
Item Description	E6013 Carbon Steel Electrode 1/16In X 14In X 5 Lb E6013-116-05P
Net Weight	5.21
Height	14
Width	2
Depth	2
