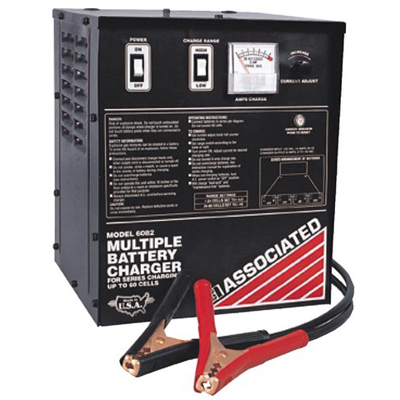

Associated Equipment 6082 | 6Amp 0-150V Series Charger

Battery Charger

Type Multi

Maximum AC Input Voltage 120 Volt

Frequency Rating 60 Hertz

Associated Equipment - 6082 - Features

• Industry standard with up to 158 Volt continuous output at 6 Amps
• Charges up to ten 12 Volt batteries at 6 amps
• State-of-the-art, anti-spark safety delay
• Voltage is shut-off when current is interrupted, eliminating sparking and provides additional protection when charging ten batteries where the voltage approaches 150 Volts DC
• Isolated transformer with full wave silicon rectifier
• Output current can be smoothly adjusted over full range with the front panel control
• Polarity protection for operator and equipment safety
• Charges all 12 Volt battery types

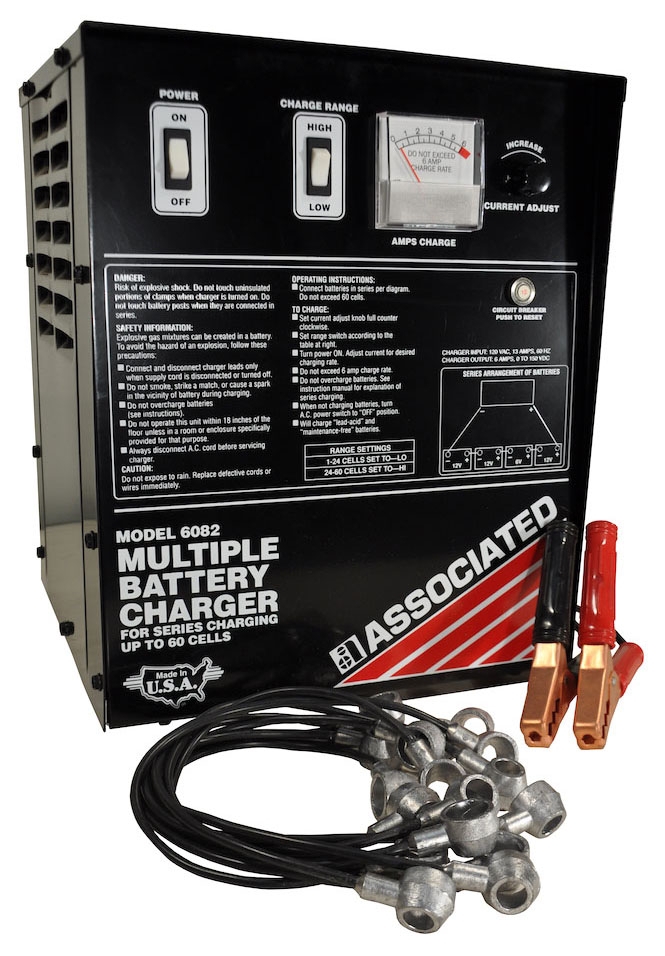

• Includes NINE charging leads (P/N 611095)
• Made in USA of US and Global Components
• Anti-spark delay timer protection for safety during hook-up
• Full wave silicon rectifier
• Isolated transformer for safety
• Circuit breaker protection
• Easy-to-remove clamps
• Heavy-duty design for safe operation and quality performance
• 1 Year Warranty
• Made in USA
• Output Voltage 0 to 158 Volt
• Output Current 6 Amp
• Charging Capacity 12 Volt (up to 10)
• Battery Type Standard Lead Acid, AGM, EFB, Lithium-Ion, Gel-Cell
• Size 16 Inch Length x 19 Inch Width x 16 Inch Height
• Charging Rate Adjustable
• Amp Meter 0 to 6 Amp
• Cable Length 8 Foot 10/2 AWG
• Cord Length 6-1/2 Foot 14 to 3 AWG
• The series charger workhorse. Charges 2-60 cells from 0 to 6 amps. With state-of -the-art, anti-spark delay, voltage is shut off when current is interrupted, eliminating sparking. Added safety feature provides greater protection when charging 10 batteries where the voltage approaches 158 volts DC. Output current can be smoothly adjusted over full range of front panel control. Polarity protection for operator and equipment safety. Nine charging leads included.

Associated Equipment - 6082 - Additional Information

• Charging Rate Adjustable
• Amp Meter 0 to 6 Amp
• Cable Length 8 Foot 10/2 AWG
• Cord Length 6-1/2 Foot 14 to 3 AWG

Associated Equipment - 6082 - Specifications

Order Part Number	AE6082
Item Description	6Amp 0-150V Series Charger
Manufacturer Long Name	Associated Equipment
Manufacturer Part Number	6082
Product Group Id	AE00
Country of Origin	US
Harmonization Code	85044095
MS Bin Code	BC013
Default Selling Unit	EA
UNSPSC	26111704

Associated Equipment - 6082 - Package Information

Shipping Weight

45.000 Pound

Associated Equipment - 6082 - Documents and Downloads

Associated Equipment 6082 Catalog Pages	Click to View
Associated Equipment 6082 Installation Instructions	Click to View
Associated Equipment 6082 Other Document 1	Click to View
