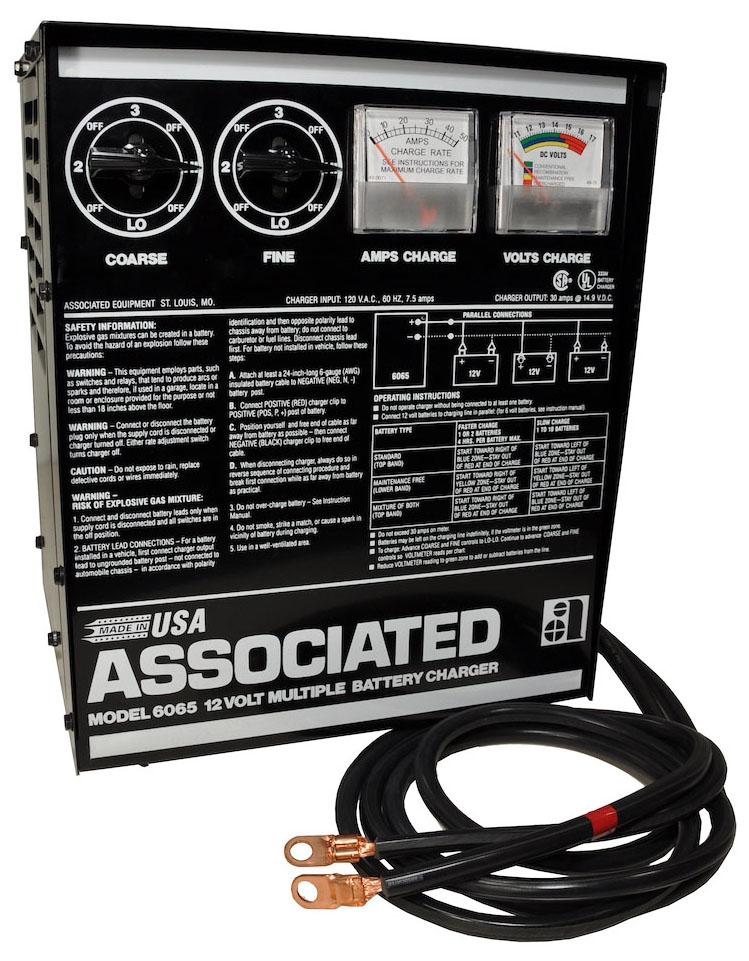

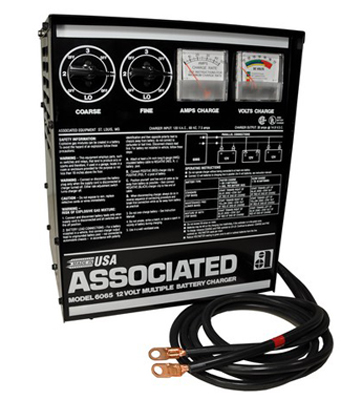

Associated Equipment 6065 | Parallel Chgr,12V 30A 1-10 Multi-Battery

Battery Charger

Type Multi

Minimum AC Input Voltage 108 Volt

Maximum AC Input Voltage 132 Volt

Associated Equipment - 6065 - Features

• Circuit breaker protection and isolated transformer provides added safety
• Can be mounted on a wall, stand or bench
• Charges all 12 Volt battery types
• Charges 1-10, 12 volt batteries in less than 24 hours in parallel
• 16 charge rates offer precise charging
• Analog Meter shows testing efficiency results
• Made in USA of US and Global Components
• Heavy Metal Cabinet Construction
• Isolated Transformer For Safety
• UL Listed
• Circuit Breaker Protected
• Mounts On Wall or Bench
• For Flooded or Wet batteries only
• Use with Bus Bar Or Charging Rack For Best Results
• Made In USA
• Frequency Rating 60 Hertz
• Output Voltage 14.9 Volt DC
• Output Current 30 Amp
• Charging Capacity 12 Volt (up to 10)
• Battery Type Standard Lead Acid, AGM, EFB, Lithium-Ion, Gel-Cell
• Size 16 Inch Length x 19 Inch Width x 16 Inch Height
• Approval UL
• Charging Rate 16
• Volt Meter 11 to 17 Volt
• Amp Meter 1 to 10 Amp
• Cable Length 6-1/2 Foot 6-1/2 AWG
• Cord Length 6-1/2 Foot 16 to 3 AWG
• The Associated Model 6065 battery charger is designed to charge 1 to 10 12 volt automotive batteries in parallel, in parallel, in less than 24 hours. Designed with the fleet or high volume shop in mind. Great for salvage yards as well. The multiple charge rates allow batteries to be slow charged or fast charged at a rate not to exceed 30 amps output of the charger. Patented multi-diode rectifier with deep reserve capacity. The volt meter allows you to adjust the charge rate to compensate for battery type, size and quantity of batteries on a charge. The output leads are terminated in ring terminals and designed to be permanently attached to the Associated

Associated Equipment - 6065 - Additional Information

• Charging Rate 16
• Volt Meter 11 to 17 Volt
• Amp Meter 1 to 10 Amp
• Cable Length 6-1/2 Foot 6-1/2 AWG
• Cord Length 6-1/2 Foot 16 to 3 AWG

Associated Equipment - 6065 - Specifications

Order Part Number	AE6065
Item Description	Parallel Chgr,12V 30A 1-10 Multi-Battery
Manufacturer Long Name	Associated Equipment
Manufacturer Part Number	6065
Product Group Id	AE00
Country of Origin	US
Harmonization Code	85044095
MS Bin Code	BC022
Default Selling Unit	EA
UNSPSC	26111704

Associated Equipment - 6065 - Package Information

Shipping Weight

40.000 Pound

Associated Equipment - 6065 - Documents and Downloads

Associated Equipment 6065 Catalog Pages	Click to View
Associated Equipment 6065 Installation Instructions	Click to View
Associated Equipment 6065 Other Document 1	Click to View
